2/2-Way Piston-operated Angle-seat Valves for Neutral and Aggressive Liquids and Gases

Product Categories

Fenghua Teason Pneumatic Co., Ltd

Contact Now

Contact Now

Ordering Code

TJZF-

15-

D-

Specification Code

TJZF: Teason Angle Seat Valve

Orifice Size (mm)

15,20,25,32,40,50

Valve Body Material

D: Tin bronze

Blank: Stainless Steel

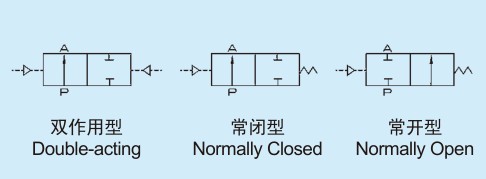

Flange connection

1: Single Action

2: Double Action

NC: Nomal Close

NO: Normal Open

Specification
Orifice Size (mm)	Port Connection (G)	Kv Value (m³/h)	Max. Working Pressure (MPa)	Min. Pilot Pressure (MPa)	Polyamide	Medium Temperature	Flow Direction
15	G1/2^''	4.2	0~1.6	0.39	50	-10 ~ + 180℃	A(flow direction below the seat) or B(flow direction above the seat)
20	G3/4^''	8	0~1.1	0.39	50
25	G1^''	19	0~1.1	0.42	63
32	G1¹/4^''	27.5	0~1.5	0.5	63
40	G1¹/2^''	42	0~1.25	0.44	63
50	G2^''	55	0~1.0	0.4	80

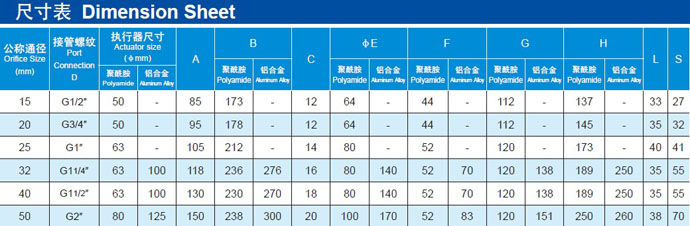

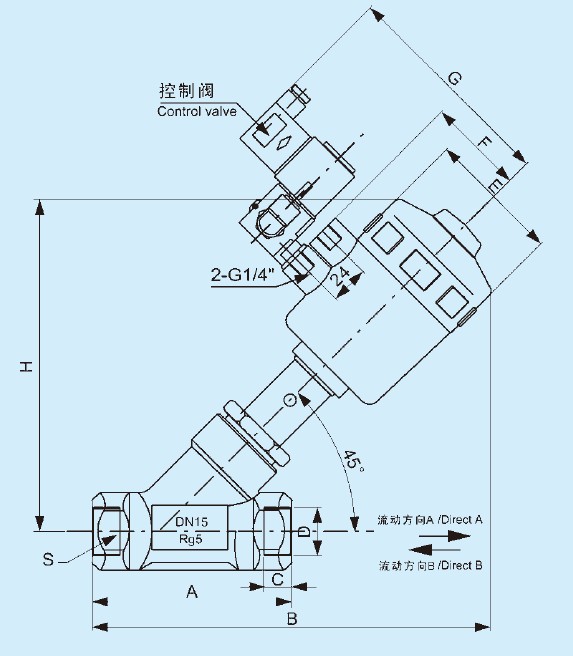

Overall Dimension

Notice

Flow direction below the seat (direction A)

1,Valves with flow direction below the seat (direction A) ensure long service life.

2,Valves used for liquid media are waterhammer-free.

3,Valves with orifice DN15/DN20/DN25 are ideal for the operating pressure of 0.3Mpa.

Vavles with orifice DN32/DN40 are operated with double-acting actuators DN100.

Valves with orifice DN50 are operated with double-acting actuators DN125.

Flow direction above the seat (direction B)

Valves with dirction B provide high sealing integrity when used for steam and gases media.

There is a danger of waterhammer ,when the valves are used for liquid media.
